Tag: truck

Volkswagen Wheelie camper complete

Volkswagen Wheelie camper complete

Here is finished model with body shell fitted. I still want to add some sponsor stickers at some point but this is it with most of the Tamiya stickers applied.

I am not a fan of the Stickers that come with Tamiya body shells especially the ones for the windows.

I have not given the model a proper test outside yet but in the quick go I did have with it I noticed the motor is too much for the wheelie bar. Full throttle will put the truck on its roof almost instantly.

I found the sweet spot for wheeling was around 80% throttle.

After landing a wheelie you can then apply full throttle to speed up as the front will not lift again until you slow down.

I have created a monster!

Over the last few evenings I finally got round to building the Volkswagen Wheelie Camper that I got in the Modelzone closing down sale.

IMG_20140213_215453633

The Car is complete except the body post mounts and the stickers on the bodyshell.

I have replaced all bearings and bushings with ball race bearings and upgraded the motor to a 12×2. This of course also required a different ESC as well.

I gave it a Spektrum splash proof receiver as Spektrum is the only radio technology I use if I can help it. This means I can bind and control all my models from a single transmitter.

Tamiya were a bit cheeky with this kit as it said it included a ball race option pack but there were not enough bearings to go around. Luckily I have a bag of them so this was not an issue.

I made the mistake of giving this a quick test indoors. This lead to it hoping off the spot doing a back flip and smashing the on/off switch.

To fix this I had to solder the wires together where the switch once existed.

I think I will finish mounting the shell before playing with it anymore!

Why I can drive my car in heavy rain.

How I can drive my car in heavy rain.

Waterproofing the receiver is as simple as stretching a party balloon over it and tightening the end where the wires come out. I had already replaced my stock speed controller with one that happened to be water resistant so no action was needed there.

Upgraded Blackfoot with 12t x2 Motor and new Electronic Speed Controller

I decided to once again upgrade my motor on my electronic monster truck. The maximum upgrade people seem to recommend for a truck of thistype is a 12 turn with x2. the x2 gives it a little more torque to make up for the torque lost by using a lower turn motor. In order to use this I also had to replace the stock speed controller with one that would support a 12t motor.

The motor is an LRP v10 spec5 12×2 and I am using a Modelsport Sniper RV-12 ESC.

They seem to give the truck a nice boost compared to the small gain received by upgrading it with a tamiya motor.

Motor installed
Modelsport UK Sniper RV-12 by Mtroniks
LRP V10 Spec 5 12×2
ESC Installed

Tamiya blackfoot ball-raced

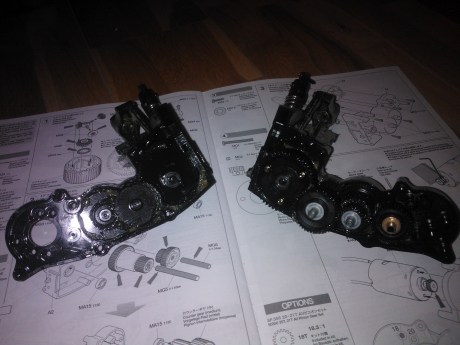

WP_000079
The gearbox

Replaced all gearbox/wheel bearings and bushings with ballrace bearings. (Bearings in photo are originals)

Next in line is a more powerful motor and possibly conversion to Lipo.

Picked up this little bargain today at Modelzone.

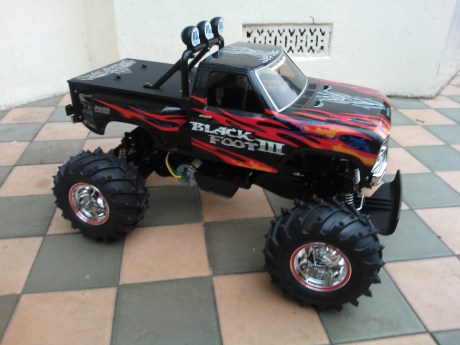

Blackfoot III XB Pro 2.4 GHZ
Blackfoot III XB Pro 2.4 GHZ

I went into Modelzone today and whilst looking at the RC cars I was told that the Blackfoot III XB Pro 2.4 GHZ was currently going for £84.99.

It was not prices up like this and was still marked at something over £250. I am not sure if this was just a price for my local store or the same deal applies around the country.

I gave it a quick test in the park and although its not as fast as the nitro vehicles i am used to its good fun and handles off road really well.

As much as I love nitro there is something to be said about the ease and hassle free nature of electric cars.
