One of the most important things to do when setting a car up for drifting is to lock the rear diff.
There are many mods around the internet detailing different ways of doing this (using glue etc) bit I decided to just buy a replacement part to do the job.

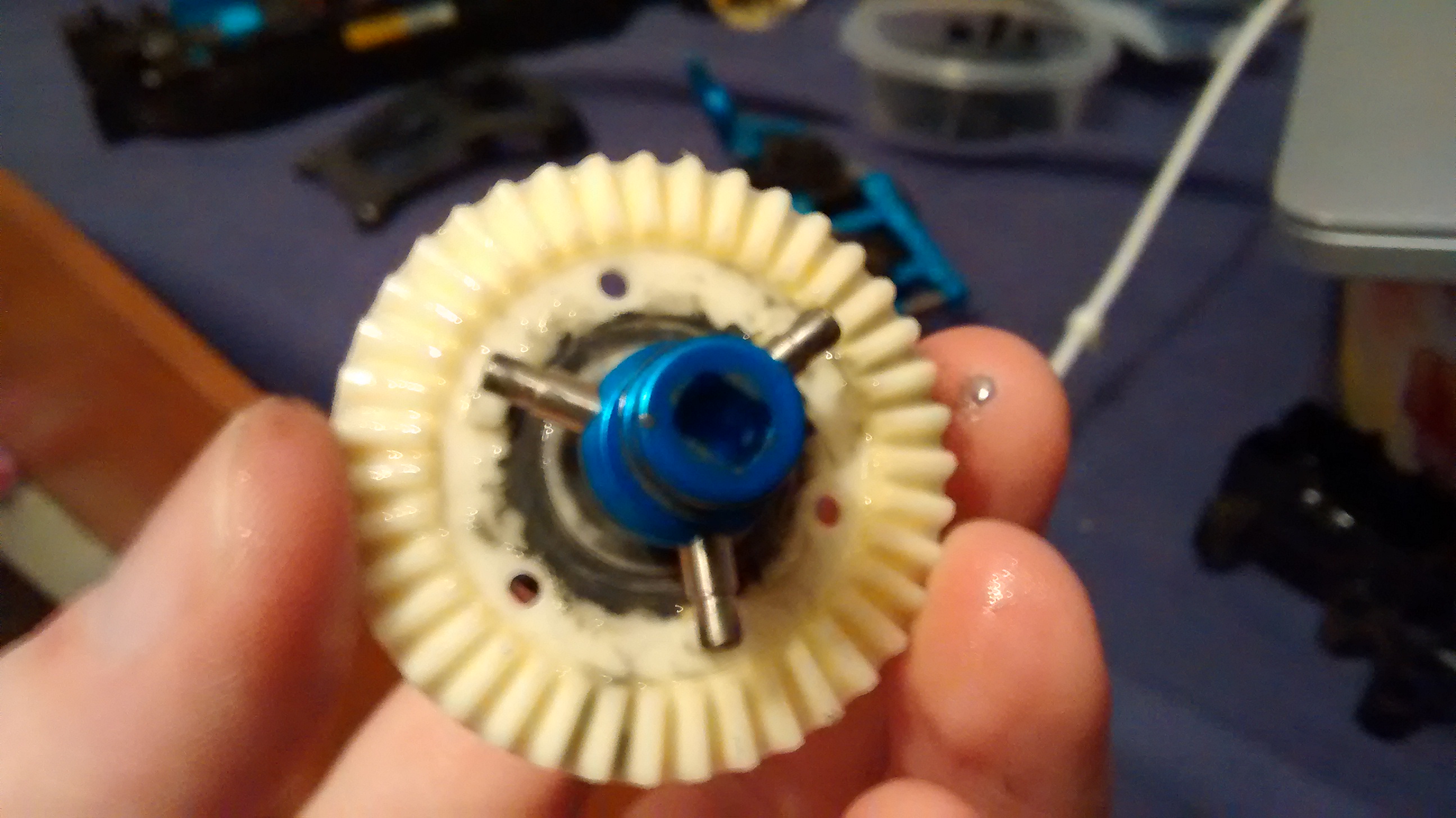

This is a single part made to replace the differential gears in a tt01 forcing the wheels to spin at the same speed.
The differential gears are removed…
… and replaced with the part locking the differential.
When I first saw this kit on modelsport I was intrigued. It was only £39 and I wanted to know just how good a car you would get for the price. You have to supply your own Electronic Speed Controller, Servo, Receiver and Motor bringing the total minimum build price to around £70- £80. I spent a bit more as I wanted to but some more decent bits in it.
The packaging and parts were a decent quality considering the price and the manual was easy to follow. This would make a nice inexpensive first kit.
Things I used to complete the build:
It seems I made a bad choice with the esc as the 13×3 motor seems to overheat it very easily, I am looking into a solution for that. On top of this I melted a battery connector to the esc so I ordered some traxxas connectors to deal with the current.
Soldering the new connectors
I also ordered a set of UK buggy bearings to ball race the kit. These replaced the bronze bushings that come as standard.
I do intend to replace my battery connectors with deans but the reason I went with a traxxas in this instance is I got this rocket pack battery in a sale. Its a 5100Mah 8.4 V Orion Rocket pack and really makes the thing go.
The bad thing is its too big for the battery compartment so I have to tape it in each time!
In summary this kit is easy to build, robust and well its cheap enough to buy a second one for a complete set of spare parts. I will upload some videos of it in action soon!

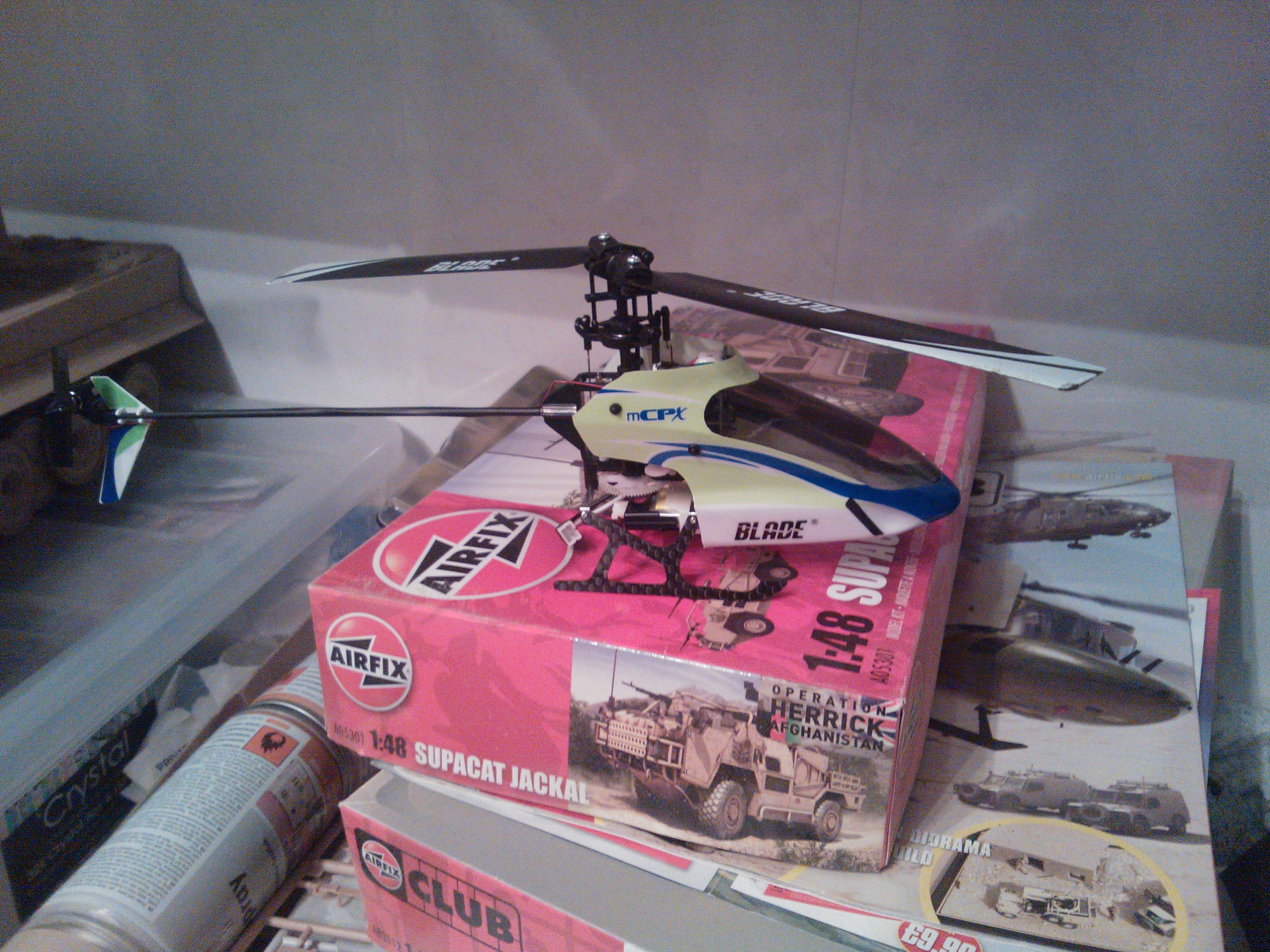

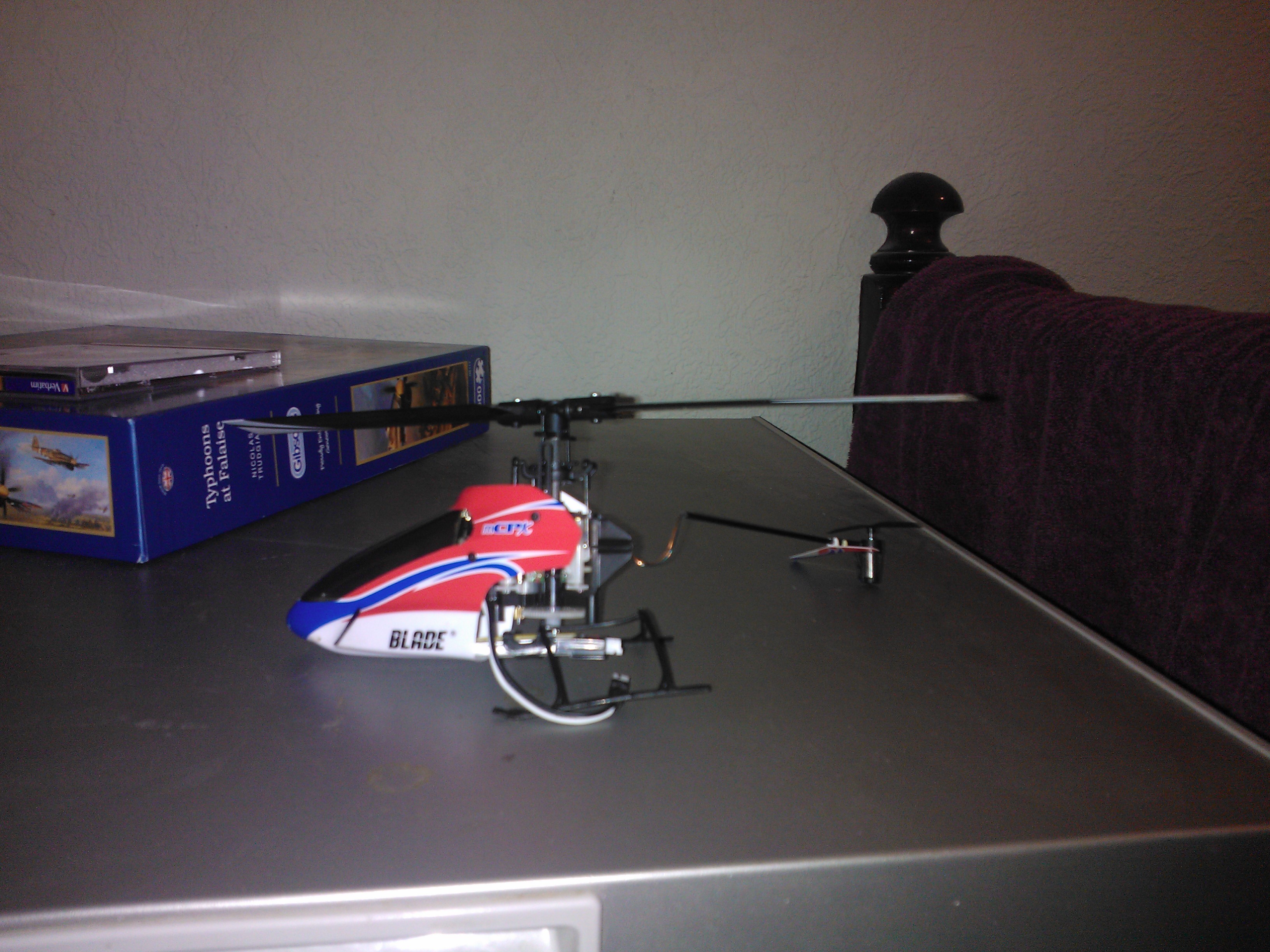

I was a bit adventurous last time I took my MCPx out and started attempting to fly upside down.
Although I did manage a pretty sketchy barrel roll I eventually crashed and snapped the tail boom and landing gear.
I started googling for parts and found their are plenty of upgrades available for this helicopter.
I brought a stronger longer tail boom (still and official part for the heli) and carbon fibre landing skids.
I was tempted by an aluminium tail boom but I figured this would just impart the force from a crash onto the main frame instead.
I have had this idea for a while now but have had to wait till I got a helicopter with a decent fuselage to attach a camera pod to. Most reasonably priced helicopters that come with a camera are not very good so I have always wanted a mod a camera onto a decent single rotor one.

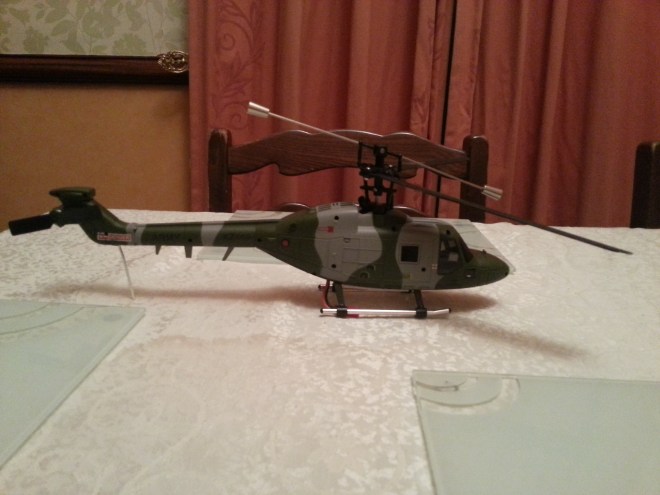

I recently brought the Hubsan Lynx single rotor that has a nice amount of flat space to attach an adhesive strip to.

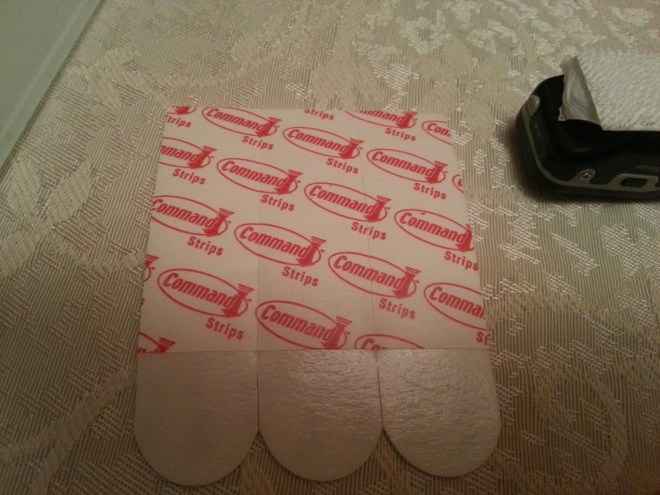

This is a really simple mod. All you need is some picture hanging strips and a spy camera.
There is a large selection of spy cameras on Amazon and I brought a few different types to mess around with. The one that I decided to use with this mod fits the hanging strip nicely so I chose that one.

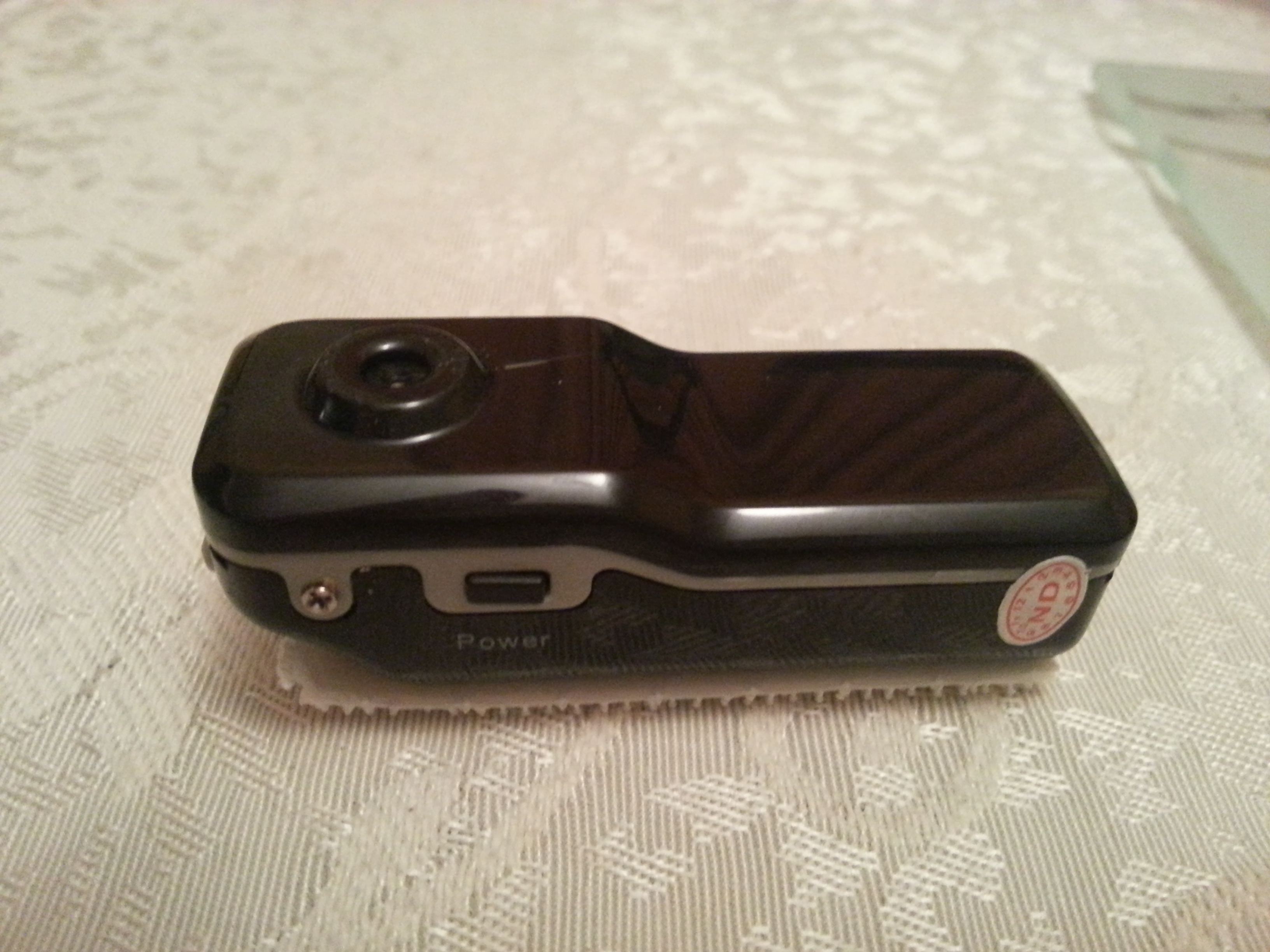

All you need to do is attach one strip to the camera…

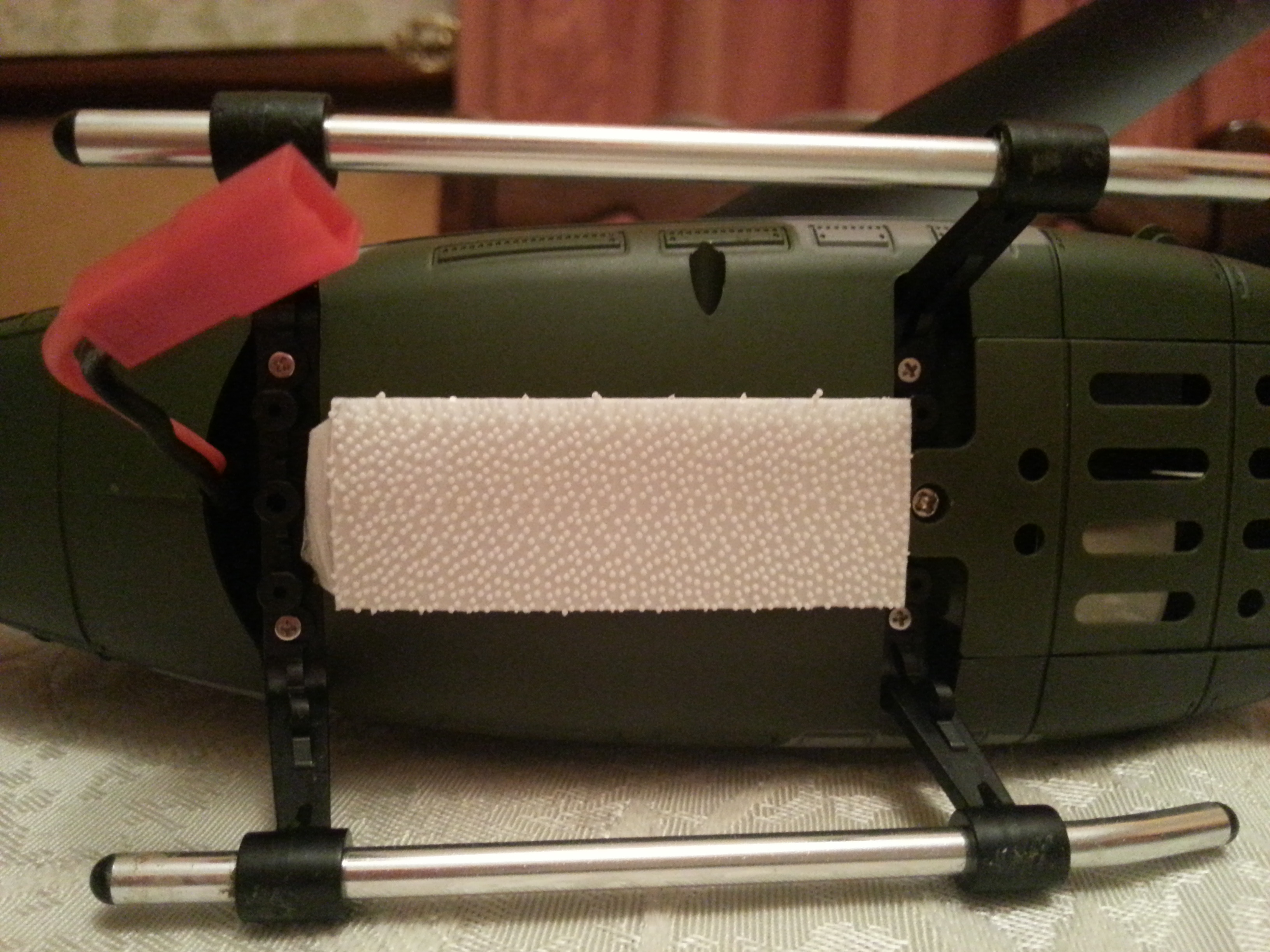

…and the other to the underbelly of the helicopter.

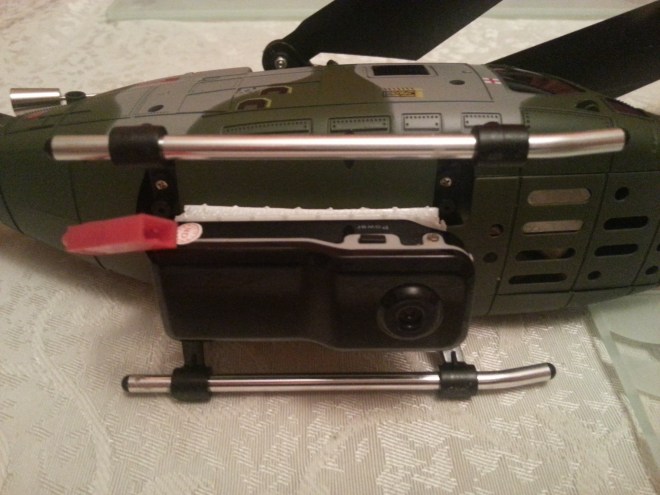

The camera sticks really well and I am sure it will hold just fine.
The only problem I see so far is that the camera protrudes the landing gear so taking off could be tricky.
That’s all for now. Will hopefully test it at the weekend.
