Skyrider Drone Pack 9

As with my 3D Printer build there has been a delay on getting the parts to continue.

With the SkyRider I have received part 9 before part 8.  This is not an issue though as part 8 is not required to work on part 9.

IMAG1560

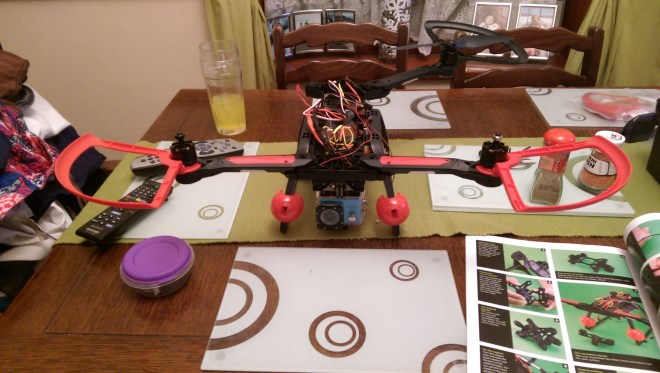

Part 9 contains the camera gimbal. This allowed me to attach my action cam to the quad copter.



IMAG1562

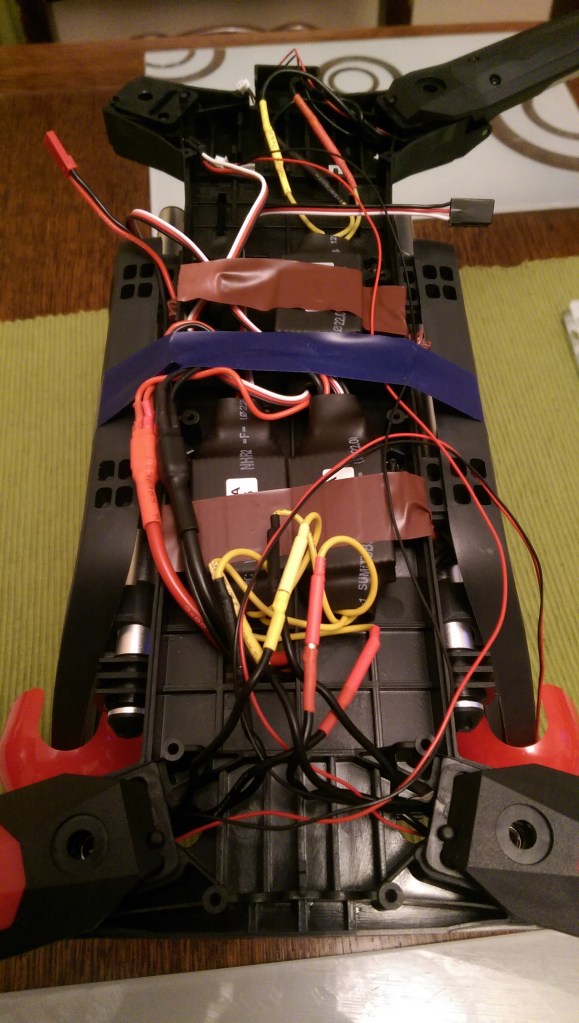

Here the esc wires are attached the the battery connector wire. There is connector left unconnected. This will connect to the esc control board which is contained within pack 8.

IMAG1563

Pack 9 also contains the red section of the SkyRiders main body. This is attached to the black section from stage 1 with double sided tape.
