3D Printer Part 5 & 6

Its been a while due to some shipment delays but here are the next two 3D Printer packs.

Part 5

IMAG1536

In this stage we add some acrylic cogs to the slider rods facing the front of the printer.

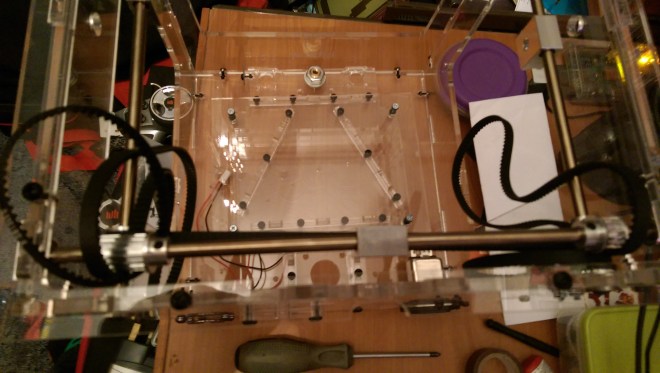

IMAG1537

Next the rear x axis rod is added to the printer. It is first prepared by adding the pulleys and cogs to the rod.

IMAG1540

Part 6

IMAG1567

In stage 6 the front x axis slider rod is added.

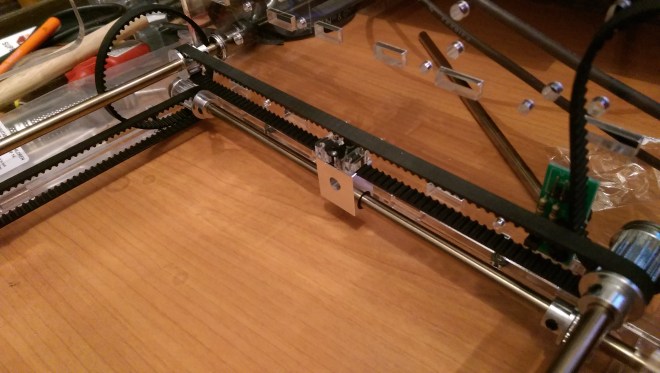

IMAG1571

Next belt clamps are added to each of the sliders. The printer is turned upside down to make it easier to add the down facing clamps.

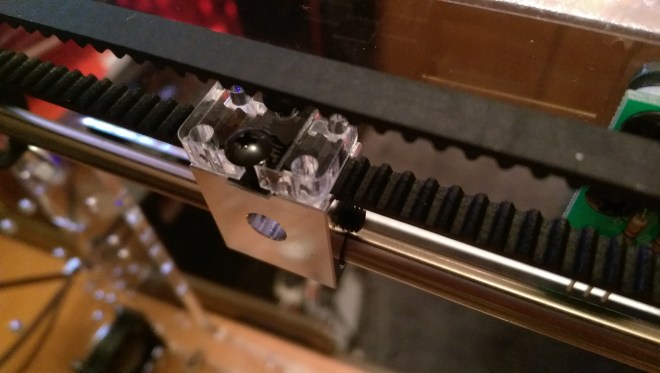

IMAG1572

The screws and gears are adjusted to ensure that the slider and belt move smoothly.

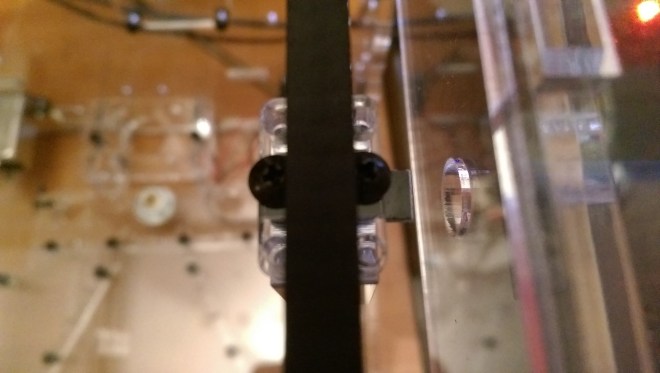

IMAG1573

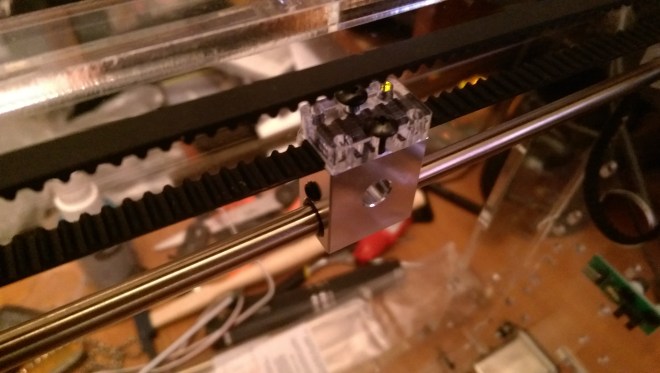

IMAG1574

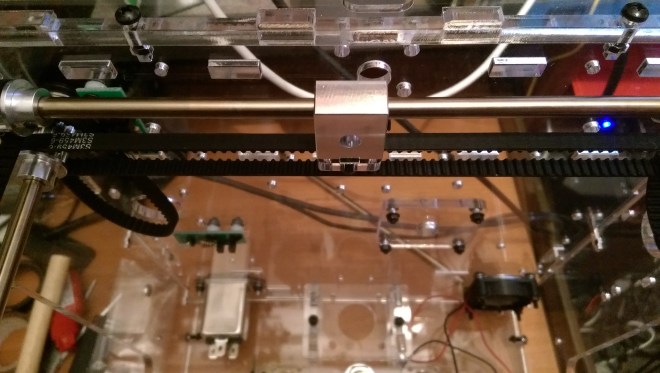

IMAG1575
