Finishing the idbox 3D Printer

Its been a while since I posted about the 3D printer build. This is because I decided to wait for the rest of the parts to arrive before finishing it all in one go.

I apologise that there may be a few black holes in this section of the build where I am missing photos.

Here is a summary of the second half of the build.

IMAG1776

The sliders for the printer head are added.

IMAG1777

Here construction on the printer head begins.

IMAG1778

The cooling fan and heat sink is added.

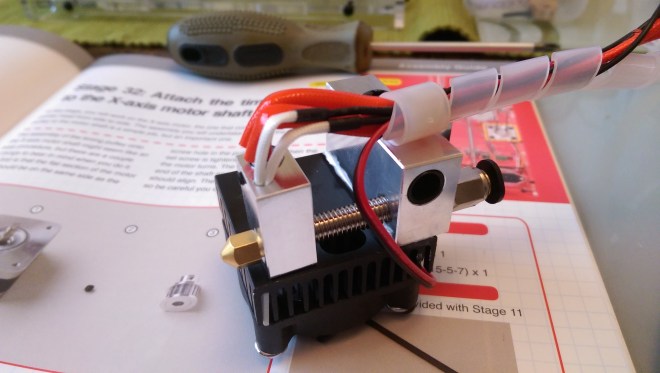

IMAG1779

The cartridge heater, thermistor is added. The cables are fed through a wire wrap to keep them tidy.

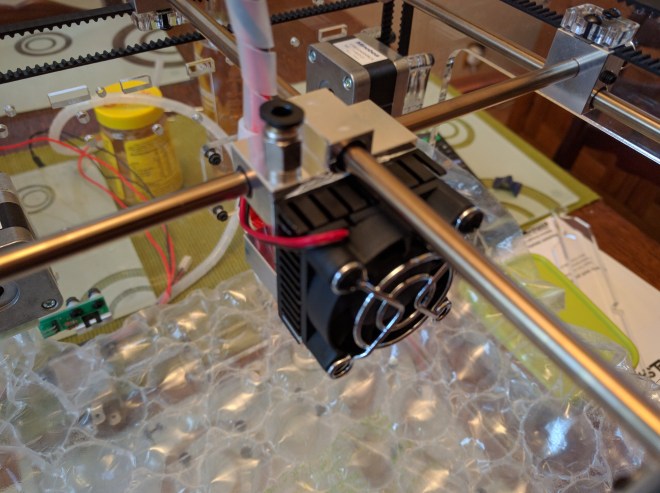

IMG_20160523_200911

The printer head is added to the structure. The head moves around the x and y axis of the printer area and is responsible for heating and extruding the plastic.

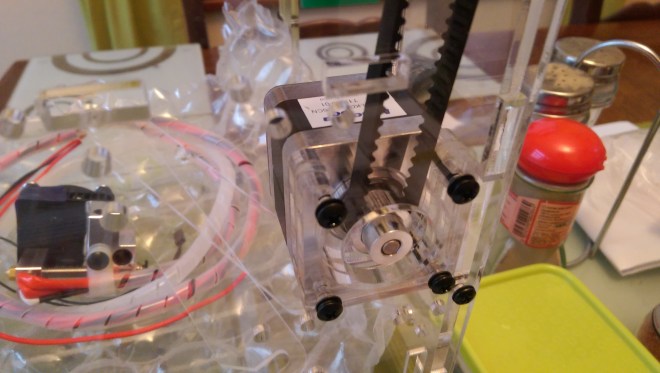

IMAG1783

The x axis motor and timing pulley are added to the printer.

IMAG1782

The Y axis motor and pulley are added to the printer.

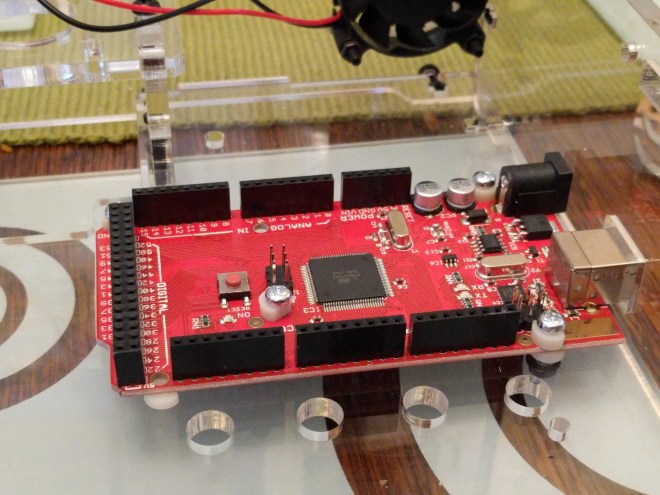

IMG_20160523_205736

The circuit board is added to the case.

IMG_20160523_214647

The driver board is attached to the lower circuit board.

IMG_20160523_214647

The cartridge heater (red cables) is plugged into the driver board (blue terminals).

IMG_20160524_193030

There is a motor driver board for each motor. These are added as each motor is plugged in. The Z axis motor is also added at this point. This motor controls the height of the printers table.

IMG_20160524_193019

The power supply unit is prepared to be added to the printer. The input voltage is set to 230V for the UK.

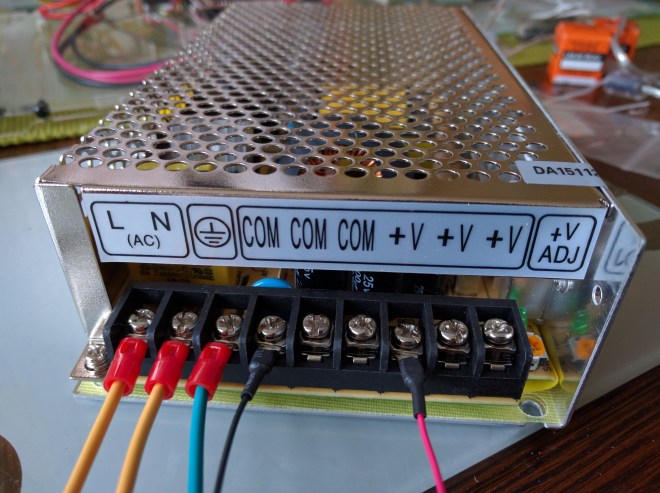

IMG_20160524_194000

Power and ground cables are attached to the terminals on the power supply. Next the thin black and read fan power cables are added.

IMG_20160524_204107

The cables from the driver board are added and the power supply is housed within the printer.

IMG_20160526_235044

The table is added to the printer supported by the two Z axis rods. The table screw that enables the table to move up and down is attached to the z axis motor after being fed through the table.

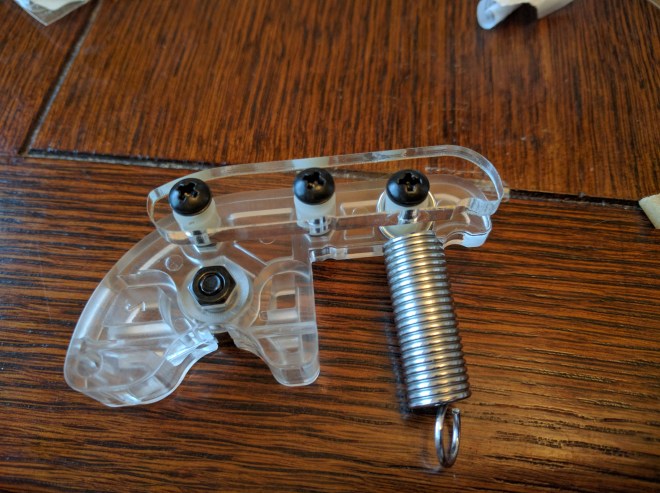

IMG_20160616_200505

The extruder arm is assembled and ready to be added to the printer.

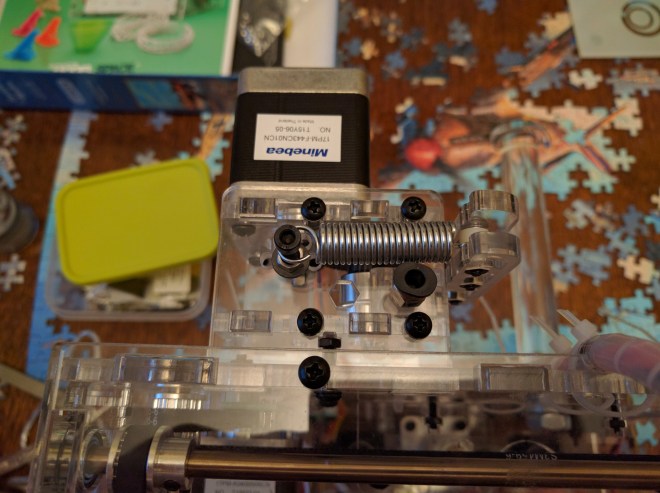

IMG_20160623_212807

The arm is added to the extruder motor housing and is attached to the back of the printer.

IMG_20160624_003510

Two plastic surfaces are screwed in under the bed to cover the electronics. The printer is now ready to be configured.
