Fusion 400 Hovercraft Build

I recently visited the Hovercraft Museum for Hovershow 2016 and it reignited my desire to build an R/C Hovercraft. I went for the top spec version of Palaform’s Fusion 400 model.

img_20160829_213740

The first thing to do was to trim the deck.

img_20160830_182829

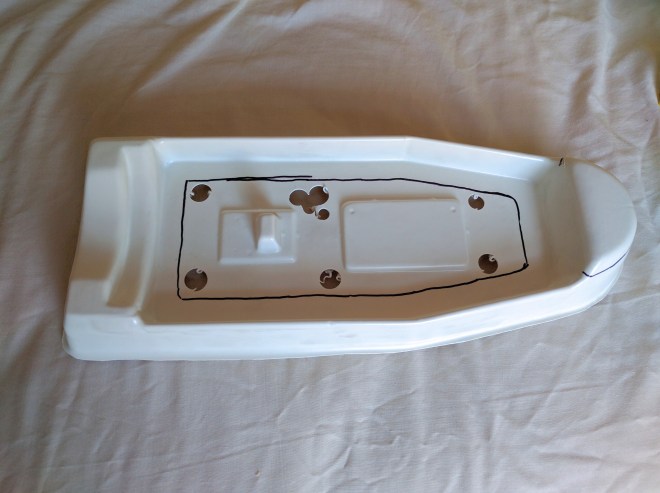

Next I started to trim the hull. The hull had a centre piece that needed removing containing the battery case catch and rudder support. I started by making some holes with my reamer.

img_20160830_183502

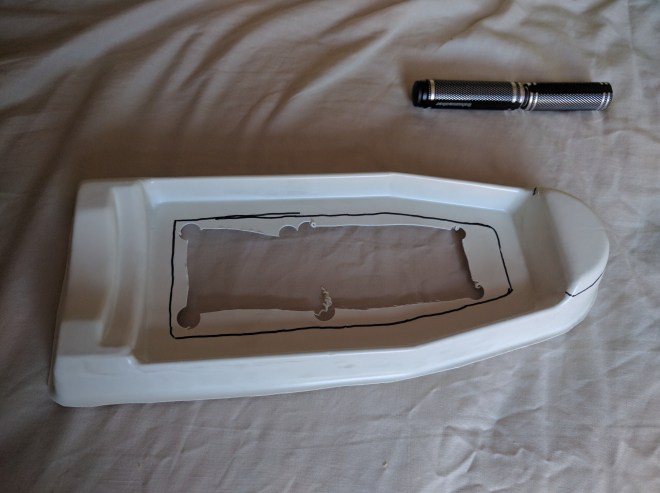

I then used my curved scissors to cut out the rest of the plastic.

img_20160830_185132

Lastly I sanded the edges to the lines I had marked. I also cut off out the semi circular air hole at the front of the deck.

img_20160905_212853

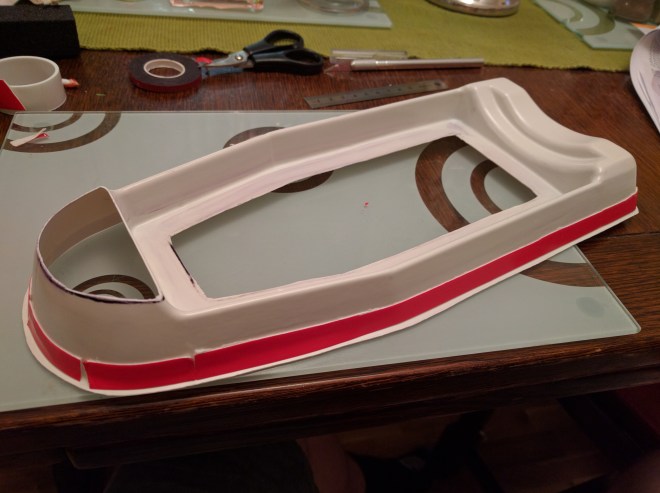

The skirt is held on with double sided tape. I used “no more nails” 19mm tape and cut it to size in different areas. First tape is applied to the upperside of the hull. This is where the inside of the skirt is attached.

img_20160905_210535

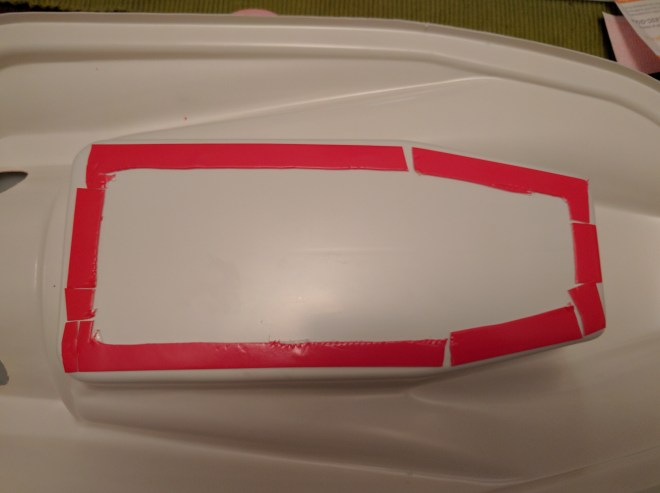

Next tape is applied to the underside of the deck. This tape attached the bottom of the deck to the upper inside section of the hull.

img_20160905_204754

Lastly tape is applied to the outside of the deck. The skirt will be folded around from the hull and attached here.

Holes at the back of the deck are also drilled at this point. These holes will allow the skirt to be inflated by the propeller.

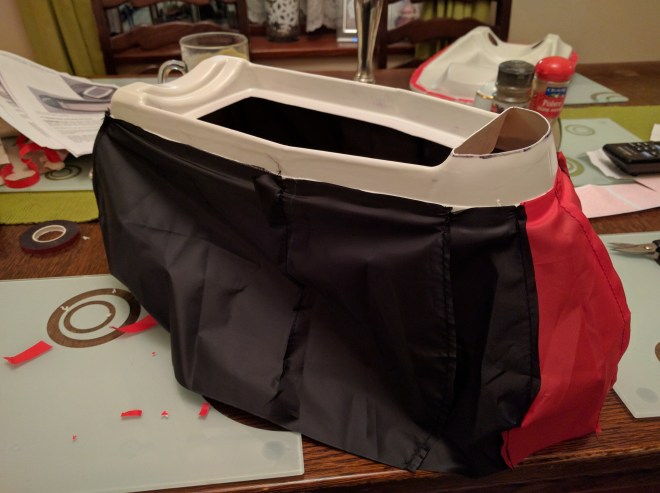

img_20160905_214349

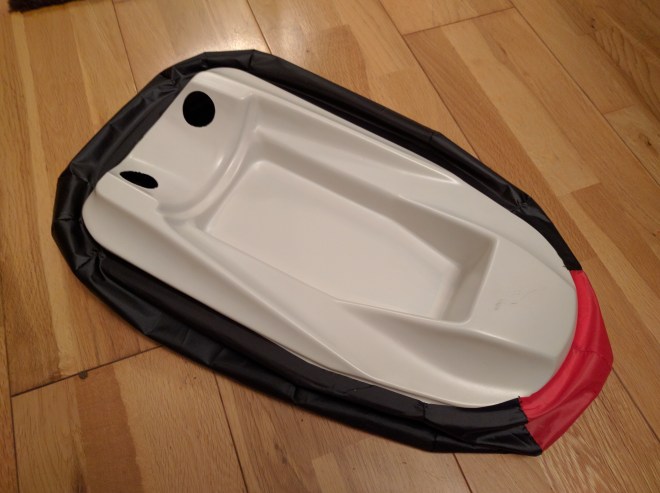

Time to attach the skirt. It is turned inside out and attached to the deck. After being attached to the hull electrical tape is wrapped around the skirt and hull to seal it further.

img_20160905_223415

The skirt is then wrapped around the top of the deck and attached to the hull.

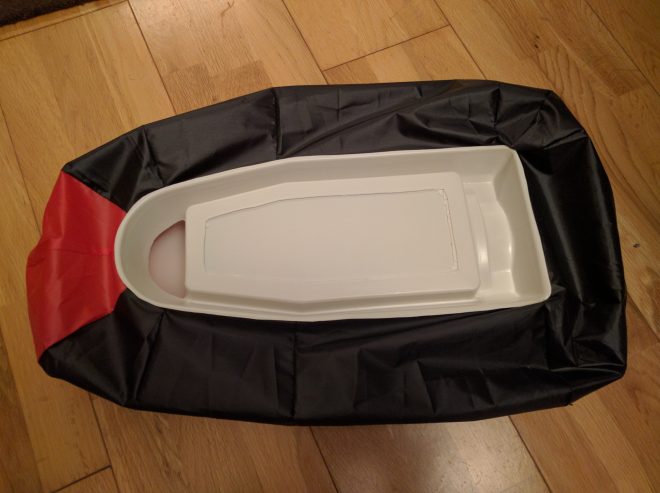

img_20160905_224055

The underside of the skirt and hovercraft. A float will be attached here at some point to allow the craft to float on water while the skirt is not inflated.

img_20160908_214110

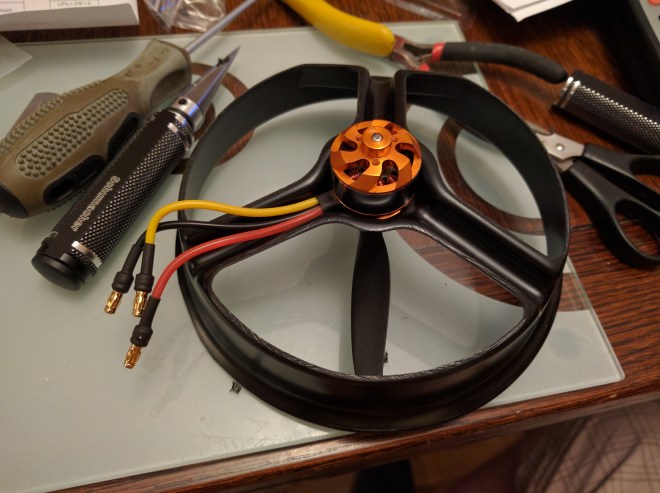

Next holes for the motor are created on the duct and the motor is attached. The propeller is trimmed to size and added to the motor shaft along with the spinner.

img_20160908_214137



img_20160910_212252

Battery and motor connectors are soldered onto the ESC and the electronics are tested.

img_20160911_195555

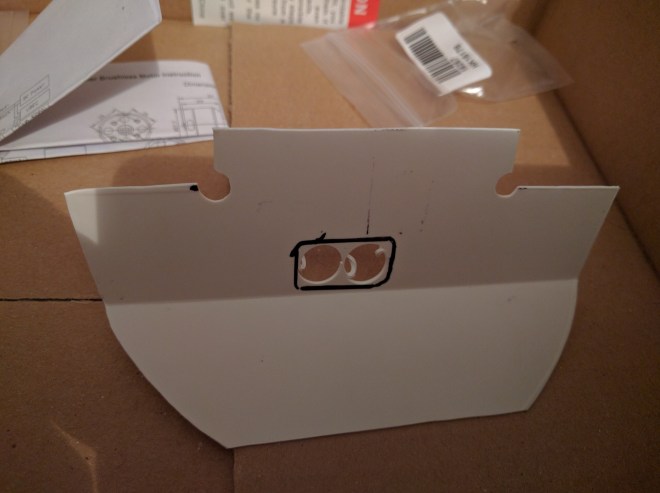

A hole for the rudder servo is marked out and made for the servo on a panel to be added to the rear of the craft. I made two big holes using the reamer and used scissors followed by a file to finish the hole.

img_20160912_184317

The server rudders and upper rudder plate are added to the craft. The lower section with the server is attached with double sided tape. The upper rudder plate is glued onto the top of the duct and the crafts registration plate is glued on.

img_20160912_184237

The battery case is attached to the craft with double sided tape, hook and loop strips are added to allow the top section to be removed to insert the battery.

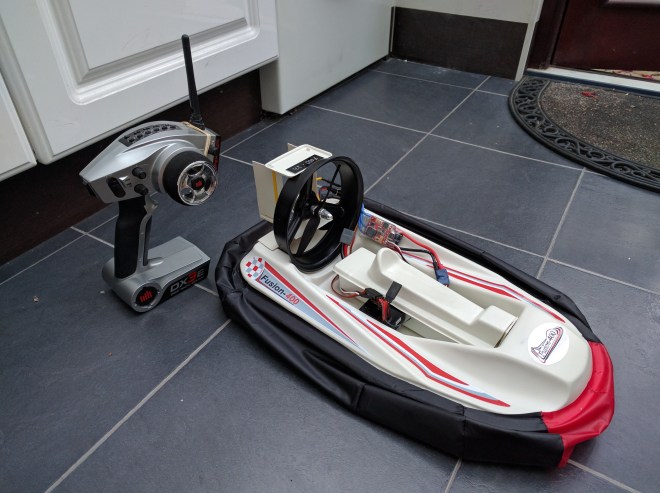

This completes the build. Below is a video of the crafts first run. In the video it is leaning a little to the front left. This was resolved by taking off and reattaching the skirt.
