Torro m16 Half Track upgraded with elmod

I have wanted this model for a while but always thought it was a bit expensive for what you get. I was pointed in the direction of Amazon where it was a fair bit cheaper than the places I was looking and I finally decided to order it.

IMG_20160530_202250

The model itself looks great, the gun has 360 degree rotation and a good level of elevation. The issue with this model comes from the electronics. Its not 2.4Ghz and only has about a 2 metre radio range.

The model is made to take 8 AA batteries or a small size 2×2 9.6v nimh pack. I did not have such a pack so I went with AA batteries for the first run. The speed was good but the runtime was poor making it an expensive run on non rechargeable batteries.

IMG_20160516_211623

Next I went to eBay to find a 2×2 9.6 pack. This was bigger than the official 9.6 pack from Torro so I had to begin my destruction of the model.

IMG_20160516_211627

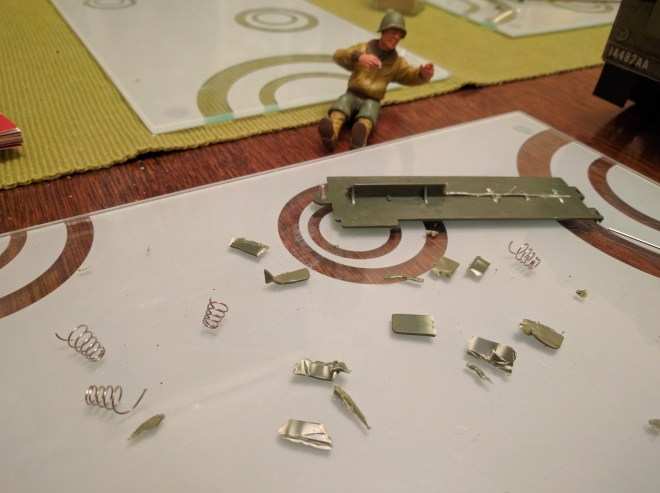

The AA battery springs and plastic dividers were preventing the battery from fitting into the compartment.

IMG_20160516_214023

I got some pliers out and started cutting away at things until the pack fit. Next I tested the battery. I was disappointed to see the lower voltage from the rechargeable cells caused a drop in speed.

IMG_20160530_202423

Next it was time to start working on fitting the elmod. To reveal the electronics the AA gun has to be removed. There are 2 screws that needed removing hidden under some ammo cases and a radio. These items were simply gently snapped off revealing the screws.

IMG_20160530_202553

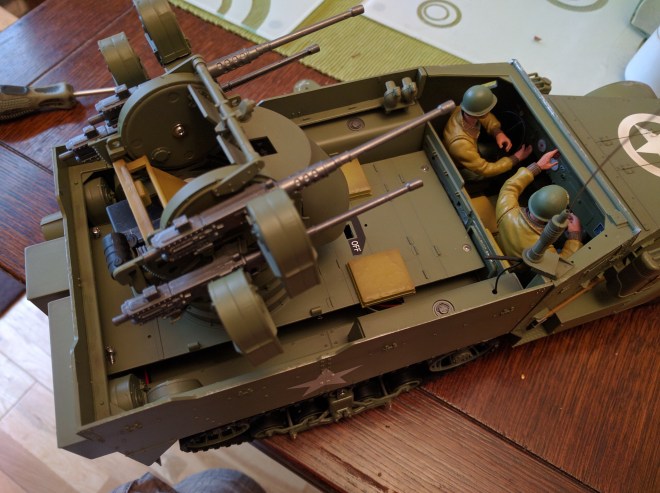

The four screws of the gun base were removed to gain access to the electronics.

IMG_20160530_202722

With the screws of the gun base removed the gun was disconnected from the circuit board.

IMG_20160530_202729

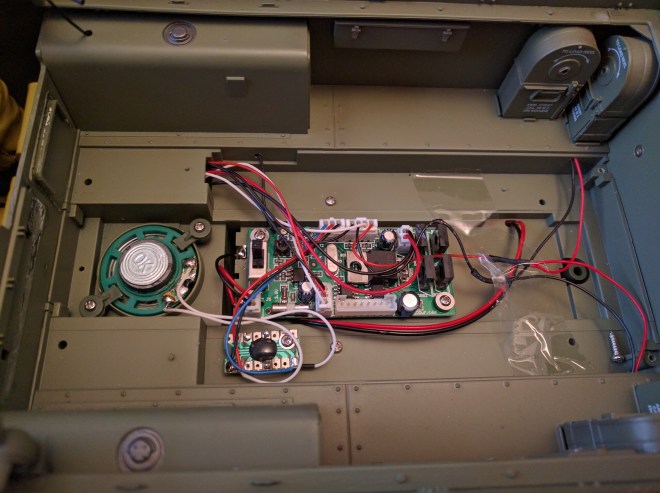

The original board and speaker.

IMG_20160530_231940

The original board is removed and replace with the elmod board. The elmod connects to standard RC receivers, has a volume knob and SD card to customise sounds. It also has a connector so that the board can be connected to a PC and parameters adjusted.

The elmod requires a 4 channel radio setup so I brought an AR400 receiver to use with a helicopter transmitter I own. At this point I tested the model but broke the stock speaker after turning the volume up on the elmod board.

IMG_20160607_210306

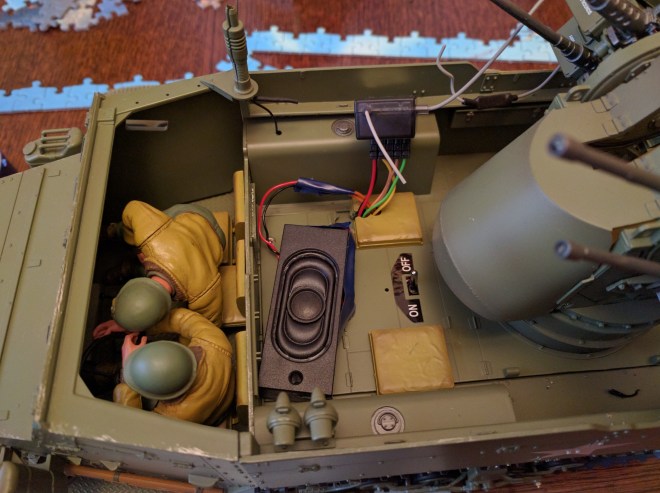

With the stock speaker broken I removed it and replaced it with a speaker from Maplin.

Next I used a reamer to make  some holes in the base to feed the speaker and reciever cables through.

IMG_20160607_210826

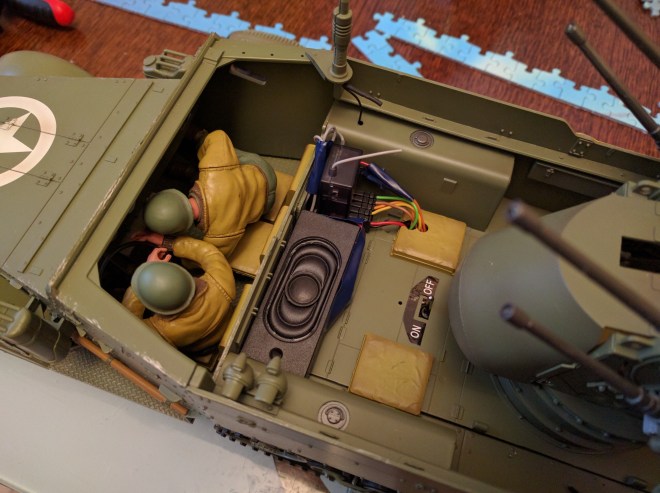

Using double sided tape I fitted the receiver and speaker to space behind the drivers seat.

IMG_20160607_212431

I used a camo net to cover the speaker and receiver. I used small pieces of tape to shape the netting.

IMG_20160607_212423

The electronics upgrade is complete but I still have a few extras on the way to add detail to the model. With the elmod board in I had no further issues with sluggish speed using a battery pack.
