Blitzer Beetle Chassis and Motor

IMAG0930

The chassis for this car was pretty quick and easy to build. I used a receiver from an old model and a cheap servo that was ordered at the same time.

IMAG0931

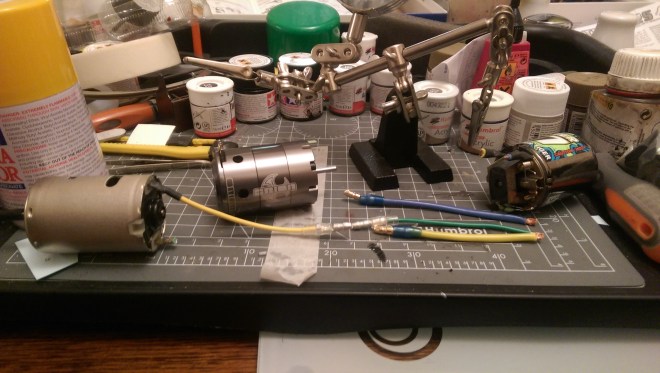

The stock silver can Tamiya motor did not even stay on the car long enough to get tested. As soon as I found out that the kit comes with a brush-less ESC I felt it was necessary to give  a brush-less motor a go. I did not realise that I would need to solder my own wires onto the new motor. To get round this I chopped some wires off of spare motors I had lying around as these already had connectors to join up with the ESC wires.

IMAG0933

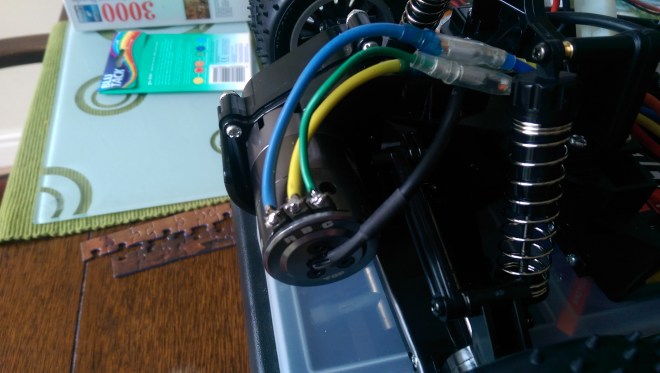

The brush-less motor has up to 4 wires instead of the standard +/- wires of a brushed motor. I matched the colours the best I could to make sure everything went into the right place.

IMAG0932

After attaching the new motor I started on the shocks. These were a bit of a pain as the shock ends did not want to screw right onto the shafts.

IMAG0934

I have given the body a coat of varnish before getting started on the details. One time I varnished a car body after putting the headlights on and this caused them to go foggy. I will never make that mistake again.

Next I gave the body a test fit and got to see for the first time how my painted wheels look with the body. I am pleased with the results so far.
