Stereo Pirate Radio

Last year I built the Pimoroni Pirate Radio which I have been listening to whilst building stuff ever since. The board the powers the audio on the radio supports two speakers but the radio as standard only has one.

Pimoroni recently released an additional matching speaker that can be attached to the other channel on the radio. It was reasonably priced so I decided to pick it up and upgrade my radio to stereo.

IMG_20180430_195340

As with most of Pimoronis cases it is made out of acrylic sheets.

IMG_20180430_200805

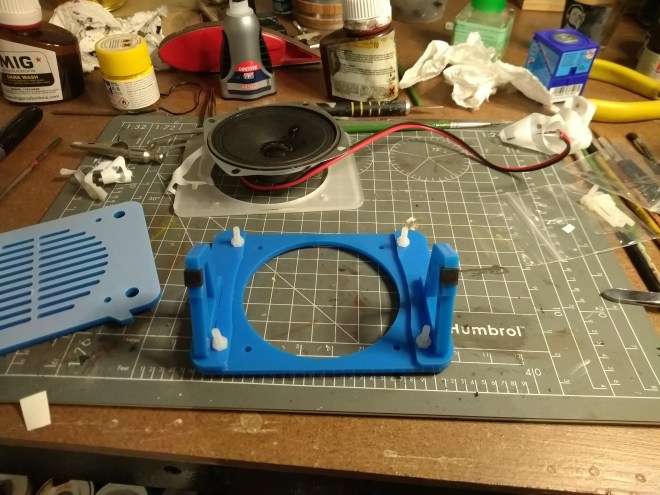

These are layered on top of each other and screwed together with nylon screws.

IMG_20180430_201226

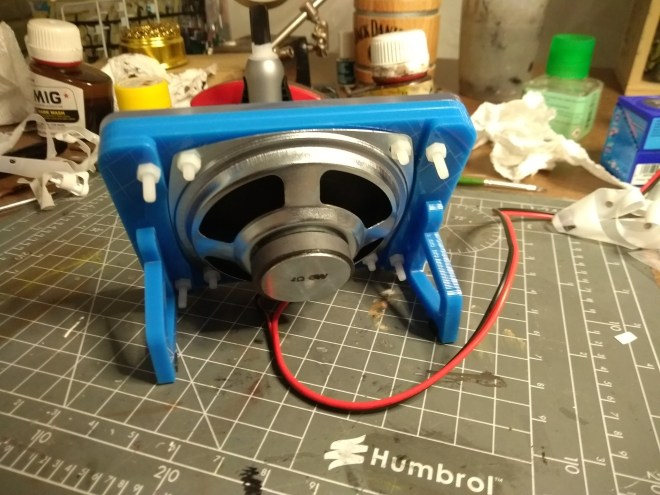

The speaker is attached to the back of the housing.

IMG_20180430_201219

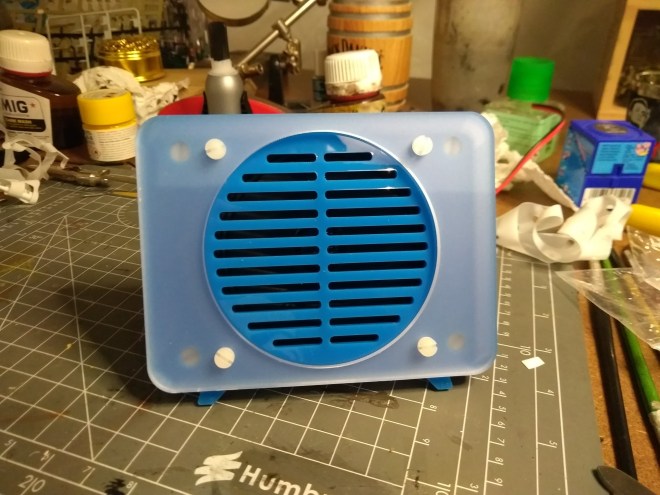

The speaker in its housing ready to go.

IMG_20180430_201635

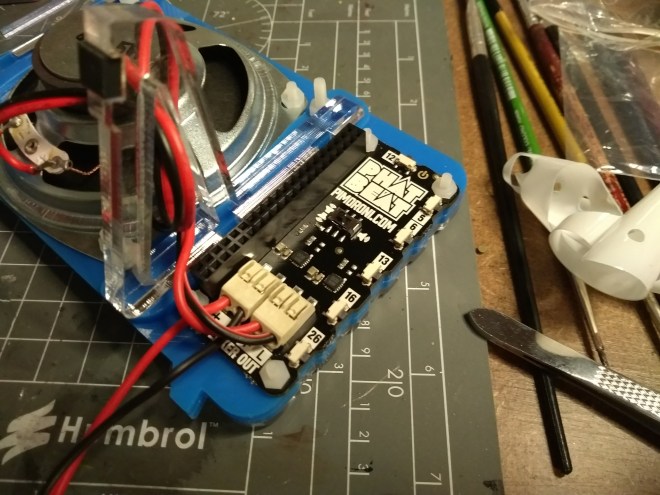

The radio is powered by a Raspberry Pi zero and use a phat beat hat for audio output. The first speaker was using the left channel with the phat beat set to mix stereo into mono output. The new speaker is attached to the right channel.

IMG_20180430_201631

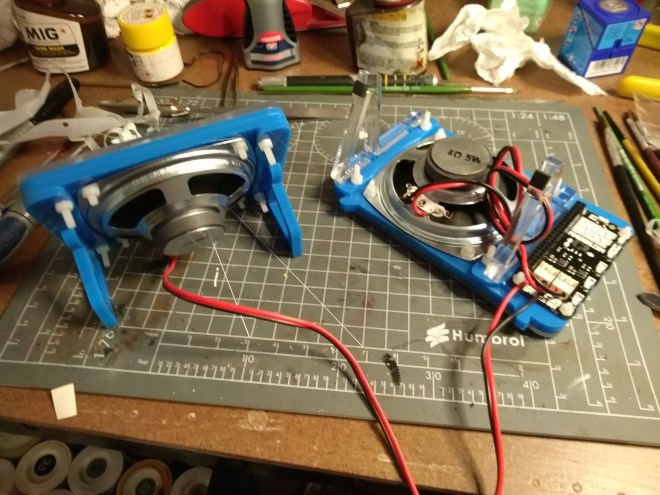

Wiring of speaker complete.

IMG_20180430_201704

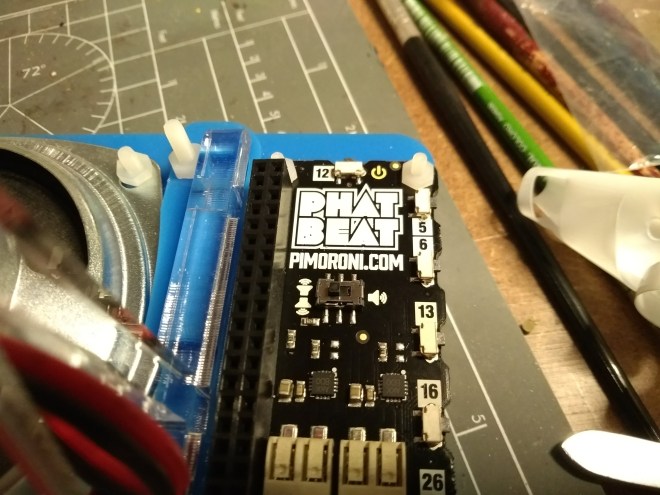

The onboard switch controlling the channel mixing is set from mono mix to stereo.

IMG_20180430_201911

After replacing the pi zero and switching the radio back on it is now in stereo!
